0.91 Inch 128×32 IIC I2C Blue OLED LCD Display SSD1306 Driver DC 3.3V 5V Module
-11%
EXPLORE 3D MODEL
VIEW IN 3D
0.91 Inch 128×32 IIC I2C Blue OLED LCD Display SSD1306 Driver DC 3.3V 5V Module
Original price was: ₹349.00.₹309.00Current price is: ₹309.00. (Including. of GST 18%)
Original price was: ₹349.00.₹309.00Current price is: ₹309.00. (Including. of GST 18%)
GST Credit of
*₹
is available on this product. Know More
In stock
Totals
x
Secure transaction
Free Delivery
Above ₹999
Above ₹999
Secure
Transaction
Transaction
Cash On
Delivery
Delivery
Not Returnable
FEATURES & SPECIFICATIONS
-
Display Type: OLED (Organic LED)
-
Screen Size: 0.91 inch (diagonal)
-
Resolution: 128 × 32 pixels
-
Display Color: Blue Monochrome
-
Interface: I2C (2-wire)
-
Driver IC: SSD1306
-
Operating Voltage: 3.3V – 5V
-
High contrast, wide viewing angle
-
Ultra-low power consumption
-
Slim and lightweight form factor
-
Compatible with Arduino, ESP, and other MCUs
0.91 Inch OLED Display Module – 128×32 Blue Screen | I2C Interface | SSD1306 Driver | 3.3V–5V Compatible

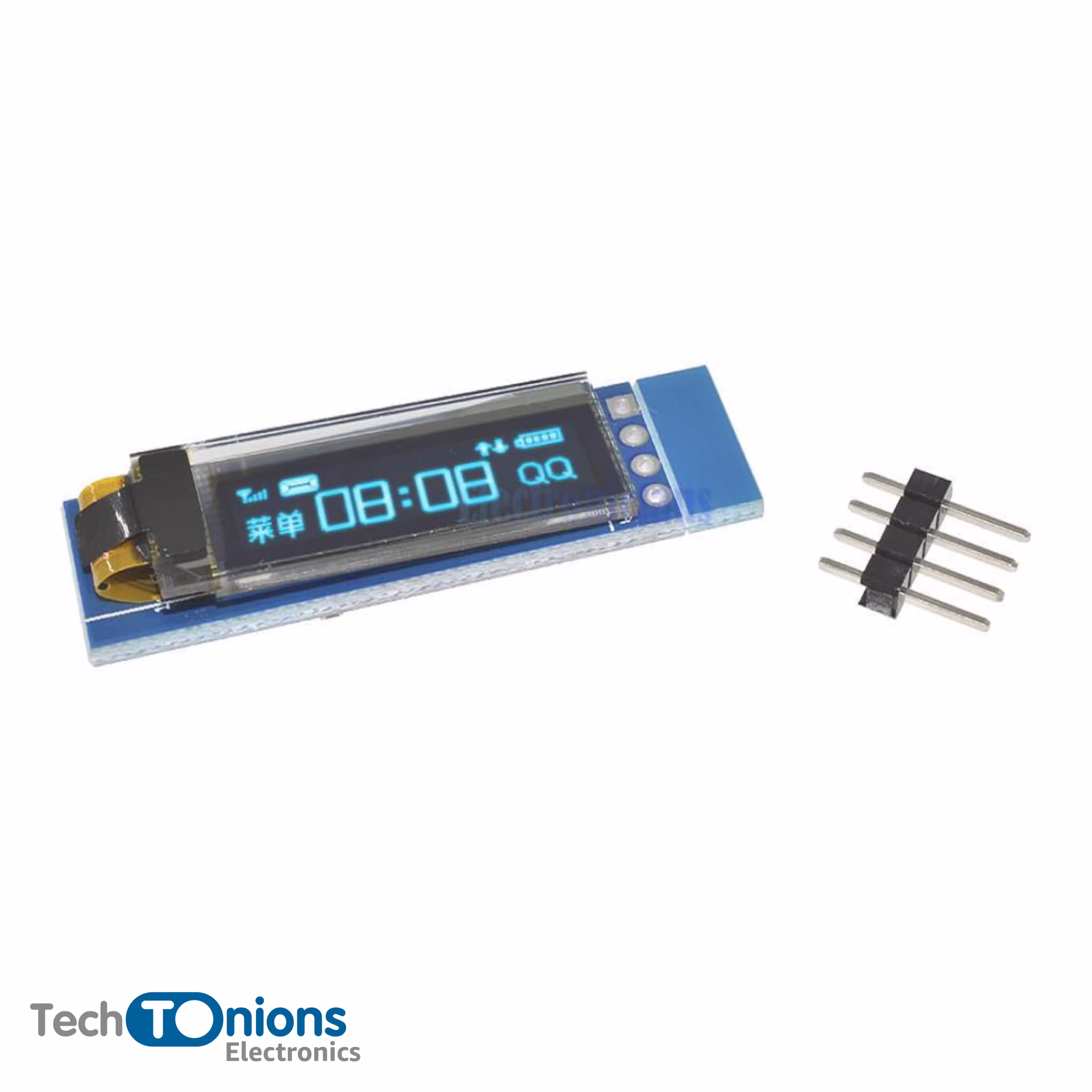

This 0.91” I2C OLED Display Module is a compact 128×32 dot matrix monochrome OLED screen featuring an I2C interface and powered by the SSD1306 driver IC. Perfect for space-constrained projects, this ultra-small display offers excellent readability, sharp contrast, and low power consumption.
Unlike traditional LCDs, OLED displays are self-emitting and don’t require a backlight, offering high brightness, wider viewing angles, and superior contrast ratios. This module operates on 3.3V to 5V, making it fully compatible with a wide range of microcontrollers including Arduino, ESP8266, ESP32, STM32, and Raspberry Pi.
📌 Pin Definition:
-
GND – Ground
-
VCC – Power Supply (3.3V–5V)
-
SCL – Clock Line (I2C)
-
SDA – Data Line (I2C)
📦 Package Includes:
-
1 × 0.91 Inch 128×32 I2C OLED Display Module (SSD1306)
🔧 Applications:
-
Arduino and ESP32 projects
-
Smart wearables and battery-powered devices
-
Compact IoT displays
-
System status monitors
-
DIY electronics and embedded interfaces
