EA DOGM128E-6 Graphic LCD Display Module – 128×64, 3.3V, Ultra-Low Power | Display Visions
-8%
EXPLORE 3D MODEL
VIEW IN 3D
EA DOGM128E-6 Graphic LCD Display Module – 128×64, 3.3V, Ultra-Low Power | Display Visions
Original price was: ₹2,179.00.₹1,999.00Current price is: ₹1,999.00. (Including. of GST 18%)
Original price was: ₹2,179.00.₹1,999.00Current price is: ₹1,999.00. (Including. of GST 18%)
GST Credit of
*₹
is available on this product. Know More
In stock
Totals
x
Secure transaction
Free Delivery
Above ₹999
Above ₹999
Secure
Transaction
Transaction
Cash On
Delivery
Delivery
Top Brand
FEATURES & SPECIFICATIONS
- HIGH-CONTRAST LCD SUPERTWIST DISPLAY (STN AND FSTN) WITH 15μm DOT GAP
- OPTIONAL LED BACKLIGHTS IN VARIOUS COLORS
- 128×64 PIXELS (CORRESPONDS TO 8×21 CHARACTERS OR 4×10 LARGE CHARACTERS)
- ST 7565R CONTROLLER WITH SPI (4-WIRE) INTERFACE
- POWER SUPPLY: SINGLE SUPPLY 3.0V TO 3.3V (TYPICALLY 270μA)
- NO ADDITIONAL VOLTAGES REQUIRED
- OPERATING TEMPERATURE RANGE -20°C TO +70°C (STORAGE -30°C TO +80°C)
- LED BACKLIGHTING 5mA TO 40mA
- NO MOUNTING REQUIRED: SIMPLY SOLDER ONTO PCB
EA DOGM128E-6 Graphic LCD Display Module – 128×64, 3.3V, Ultra-Low Power | Display Visions

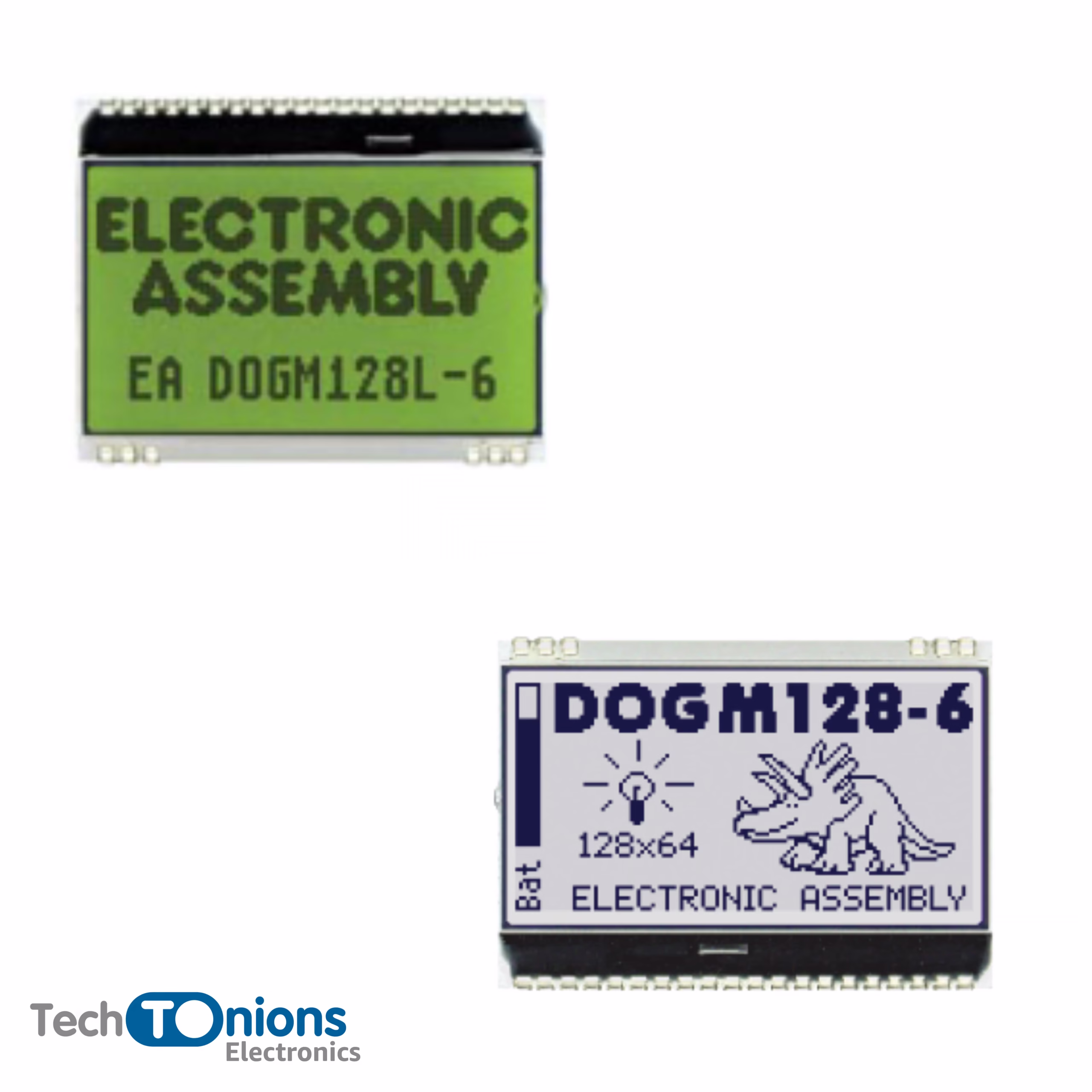

The EA DOGM128E-6 is a high-contrast 128×64 pixel graphic LCD module from Display Visions, designed for low-power embedded systems and professional applications requiring compact yet highly legible displays. With its STN positive reflective technology and super-twisted nematic (STN) display mode, it offers excellent visibility even in bright ambient conditions — without needing a backlight.
This module operates at 3.3V and features a serial (SPI) and parallel interface, making it highly compatible with a wide range of microcontrollers, including STM32, Atmel, NXP, and Arduino platforms. It is part of the modular EA DOG series, enabling flexible combination with optional LED backlights in different colors.
📦 Package Includes:
-
1 × EA DOGM128E-6 Graphic LCD Module
✅ Features:
-
Resolution: 128 x 64 dots
-
Display Type: STN positive reflective (without backlight)
-
Operating Voltage: 3.3V
-
Interface: SPI (4-wire), I²C, and 8-bit parallel
-
Temperature Range: –20 °C to +70 °C
-
Low power consumption – ideal for battery-powered devices
-
Compact design: suitable for handheld and industrial equipment
-
Fully compatible with EA DOG backlight modules (optional add-on)
📌 Applications:
-
Industrial handheld instruments
-
Battery-powered measurement devices
-
Medical equipment
-
Wearables and portable terminals
-
Embedded control panels and automation interfaces
Specifications Table

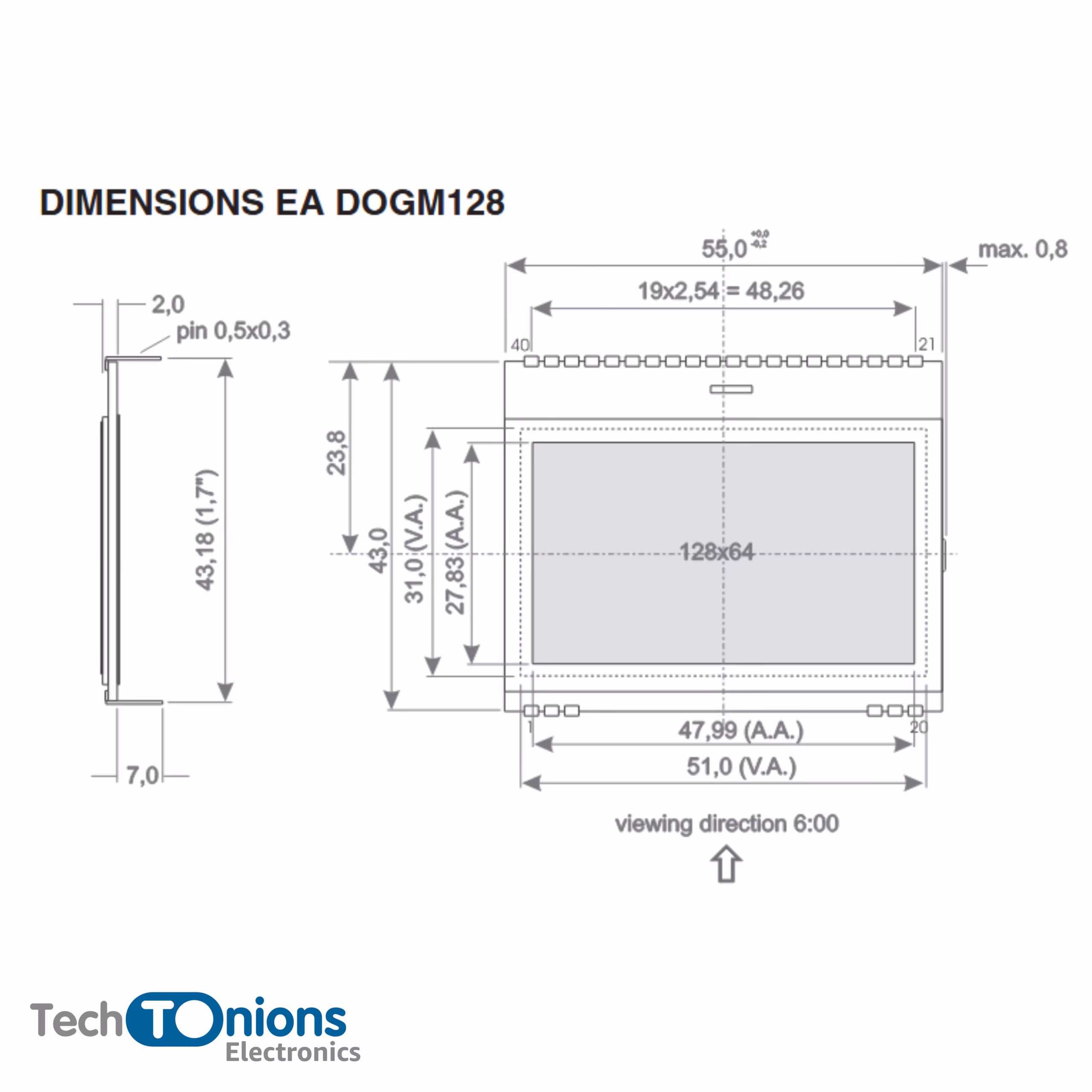

| Length | 5.5 cm |
| Width | 4.6 cm |
| Height | 0.2 cm |
| Model Type | Transmissive |
| Item Type | STN - Super-Twisted Nematic |
| Weight (g) | 9.48 |
| Shipping Weight | 0.00948 kg |
| Shipping Dimensions | 5.5 cm × 4.6 cm × 0.2 cm |
