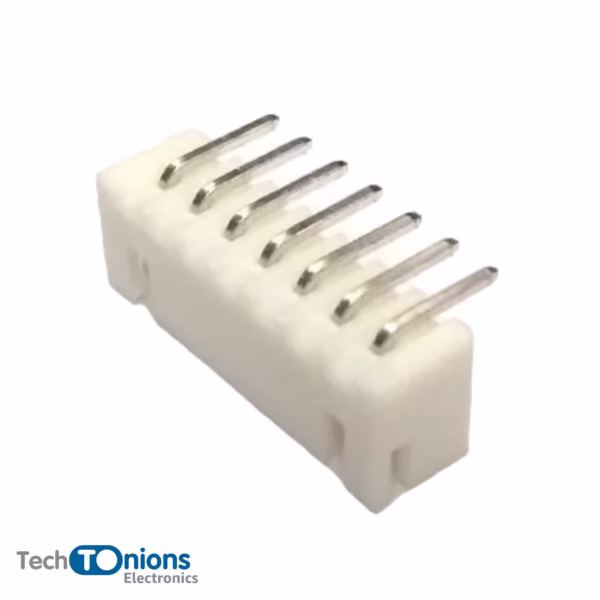

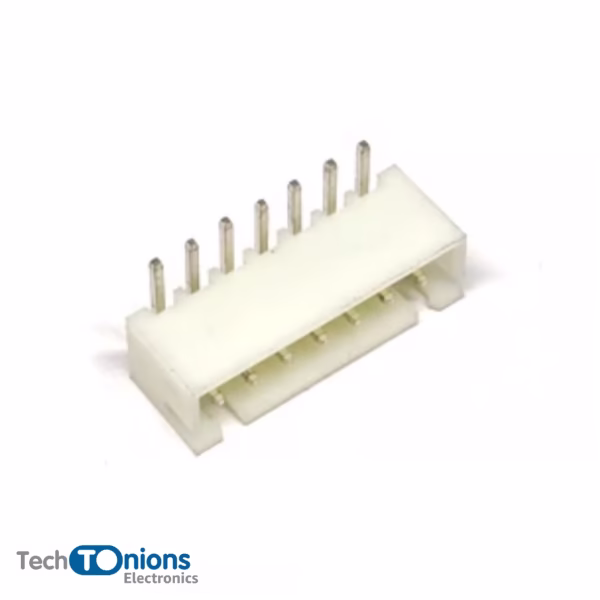

Horizontal Right Angle Through Hole Header 7 pin JST 1.25mm
-53%
EXPLORE 3D MODEL
VIEW IN 3D
Horizontal Right Angle Through Hole Header 7 pin JST 1.25mm
Original price was: ₹8.35.₹3.95Current price is: ₹3.95. (Including. of GST 18%)
Quantity based pricing
₹3.95
5 - 9
₹3.87
(2% off)
10 - 19
₹3.79
(4% off)
20 - 49
₹3.75
(5% off)
50 - 99
₹3.71
(6% off)
100+
Original price was: ₹8.35.₹3.95Current price is: ₹3.95. (Including. of GST 18%)
GST Credit of
*₹
is available on this product. Know More
Out of stock
Secure transaction
FEATURES & SPECIFICATIONS
- 7-Pin JST GH Connector
- Horizontal Right Angle
- Pitch: 1.25mm
- Current rating: 1A
- Voltage rating: 50V DC
- Temperature range: -25˚C to +85˚C
- Type: Male
- Orientation: Side Entry
- Through Hole
Looking for a reliable and easy-to-use connector for your electronics projects? Our 7-pin JST 1.25mm horizontal right-angle through-hole header is an ideal choice.
This header features a compact and durable design, with a right-angle orientation that allows for easy installation in confined spaces. The through-hole mounting style provides a secure and reliable connection, while the 7-pin design allows for a range of applications.
With a current rating of 1A and a voltage rating of 50V AC/DC, you can trust this header for a variety of projects. The temperature range of -25°C to +85°C ensures reliable performance in a range of environments.
Constructed with high-quality materials, including a UL94V-0 rated nylon housing and copper alloy contacts, this header is built to last. The contact resistance is a maximum of 30mΩ, while the insulation resistance is a minimum of 100MΩ, ensuring a consistent and stable connection.
So why wait? Order your 7-pin JST 1.25mm horizontal right-angle through-hole header today and experience the reliable and hassle-free connection it provides for your electronics projects.
Specifications Table
| No. of Pin | 7 |
| Current rating | 1A |
| Voltage rating | 50V DC |
| Gender | Male |
| Pitch | 1.25mm |
| Type | PCB header |
| Mounting | Through Hole |
| Orientation | Side Entry |
| Plating | Au |
| Insulation resistance | 100 MΩ min |
| Contact Material | Brass |
| Temperature range | -25 to 85°C |
| Material | Plastic case Matel connect |
| Color | White |
