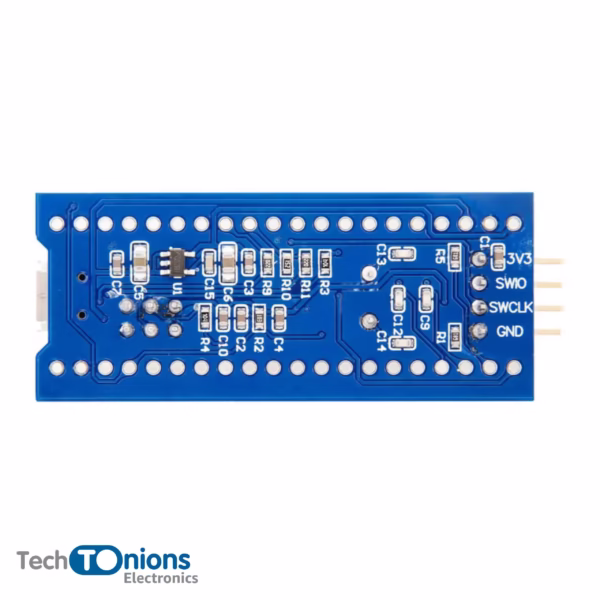

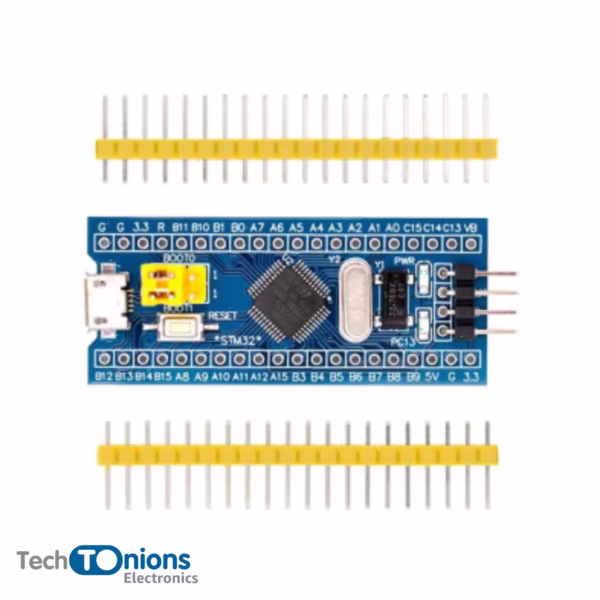

STM32F103C8T6 BLUE Pill Dev Board
Original price was: ₹185.00.₹118.00Current price is: ₹118.00. (Including. of GST 18%)
Original price was: ₹185.00.₹118.00Current price is: ₹118.00. (Including. of GST 18%)
GST Credit of
*₹
is available on this product. Know More
Out of stock
Secure transaction
FEATURES & SPECIFICATIONS
- Blue Pill Development Board
- Microcontroller: STM32F103C8T6
- MCU Brand: Generic Brand
- Core: Arm Cortex-M3
- Max. Clock Speed: 72MHz
- Package: LQFP 48 pins
- Internal Flash: 64KiB
- SRAM: 20KiB
- Debug mode: SWD.
- 2.0-3.6V power, I/O.
- Reset(POR/PDR).
- 4-16MHz crystal.
-
72MHz work frequency.
-
64K flash memory, 20K SRAM.
-
With a mini USB interface, you can give the board a power supply and USB communication onboard.
- Weight : 6.05 g
-
Size:5.3cm x 2.3cm.
The STM32F103C8T6, commonly called the “Blue Pill” is a popular development board featuring the STM32F103C8 microcontroller. Due to its affordability and versatility, this board is widely used in the maker and DIY electronics community.
The STM32F103C8 microcontroller is based on the Arm Cortex-M3 core. It offers 64KB of flash memory and 20KB of SRAM and operates at a maximum frequency of 72MHz. It features a rich set of peripherals, including ADCs, timers, UARTs, SPI, I2C, USB, and CAN interfaces, making it suitable for various applications.
The “Blue Pill” development board provides easy access to the microcontroller’s pins through header pins, allowing for easy prototyping and experimentation. It typically comes with an onboard LED and reset button for basic functionality testing.
Developers often use the STM32F103C8T6 Blue Pill board for various projects, including robotics, IoT devices, sensor interfaces, and motor control. Its open-source support and compatibility with popular development environments like Arduino and STM32CubeIDE make it a preferred choice for hobbyists and professionals.
Questions and Answers
You are not logged in
Sorry no more offers available
Original price was: ₹185.00.₹118.00Current price is: ₹118.00. (Including. of GST 18%)
GST Credit of
*₹
is available on this product. Know More
Out of stock
Secure transaction
The GST Input Tax Credit is available on any purchase from our website.
Buying for work? Just enter your Company Name and GST No in your billing address at the time of checkout to access GST invoices, business-exclusive deals and bulk discounts. Know More.
All New Products
Bestselling Products
10 Pin JST XH Connector male – 2.5mm Top Entry Header
In stock
₹6.00 - ₹6.80 (Including. of GST 18%)
SKU:
TO-42367
8051 NuMicro MS51 Microcontroller IC 8-Bit nuVoton MS51PCOAE
In stock
Original price was: ₹180.00.₹65.00Current price is: ₹65.00. (Including. of GST 18%)
SKU:
TO-32317
- core Processor: 8051 8-8it 24MHz
- Connectivity: 12C, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, LVR, POR, PWM, WDT
- Number of I/0 : 30
- Program Memory Size: 32KB (32K x 8)
- Program Memory Type: FLASH
- RAM Size: 2K x 8
- Voltage - Supply (VCC/Vdd): 24V 5.5V
- Operating Temperature: -40°C ~ 105°C
- 4-priority-level interrupts capability.
- Mounting Type: SMD
- Package / Case: 32-LQFP
- Dual Data Pointers (DPTRs)
- POR with 1.15V threshold voltage level
- LVR with 2.0V threshold voltage level
- Default 16 MHz high-speed internal oscillator (HIRC) trimmed to ±1% (accuracy at 25 °C, 3.3 V)
- Selectable 24 MHz high-speed internal oscillator (HIRC)
- Weight : 0.19 g
8051 W79 Microcontroller IC 8-Bit 24MHz 2KB nuVoton (W79E2051AKG)
In stock
Original price was: ₹150.00.₹98.00Current price is: ₹98.00. (Including. of GST 18%)
SKU:
TO-69584
- Fully static design 8-bit Turbo 51 CMOS microcontroller up to 24MHz
- Single power: 2.4~5.5V Up to 12MHz, 4.5~5.5V up to 24MHz
- Instruction set compatible with MCS-51
- 4K/2K bytes of Program Flash EPROM
- 256 bytes of on-chip RAM
- Two 16-bit timer/counters
- 9 Interrupt source with four levels of priority
- One channel 10-bit PWM output
- One analog Comparator
- Operating Temperature: -40~85℃
- Weight : 1.38 g
APM32F103C8T6 microcontroller ARM Cortex-M3 64KB FLASH 20KB 48-LQFP
In stock
Original price was: ₹210.00.₹160.00Current price is: ₹160.00. (Including. of GST 18%)
SKU:
TO-19963
- System Architecture - 32-bit Arm® Cortex®-M3 core - Up to 96MHz working frequency
- Clock and Memories - HSECLK: 4MHz~16MHz externa
- Power supply and low-power mode - 2.0 ~ 3.6 V reset supply voltage - Support programmable Volta
- FPU - Independent FPU module supports floating point operation
- ADCs and Temperature Sensor - 2 12-bit ADCs, 16 input channels are supported - ADC voltage conversion range: 0~VDDA - Double-sample and hold capability supported - 1 on-chip temperature sensor
- I/O - 80/51/37/26 I/Os selectable, depending on models and packages - All I/O pins are mappable to o 16 external interrupt
- Communication Interfaces - 3 USARTs, support ISO7816, LIN and IrDA - 2 I2C, support SMBus/PMBus - 2 SPIs with a maximum transfer speed of 18Mbps - 1 QSPI, support single - and four-wire access to Flash - 1 USB 2.0 FS Device - 1 CAN 2.0B, USBD and CAN can work independently at the same time
- 1 CRC Unit
- 96-bit UID
- Serial wire debug SWD and JTAG interfaces
- Weight : 0.17 g

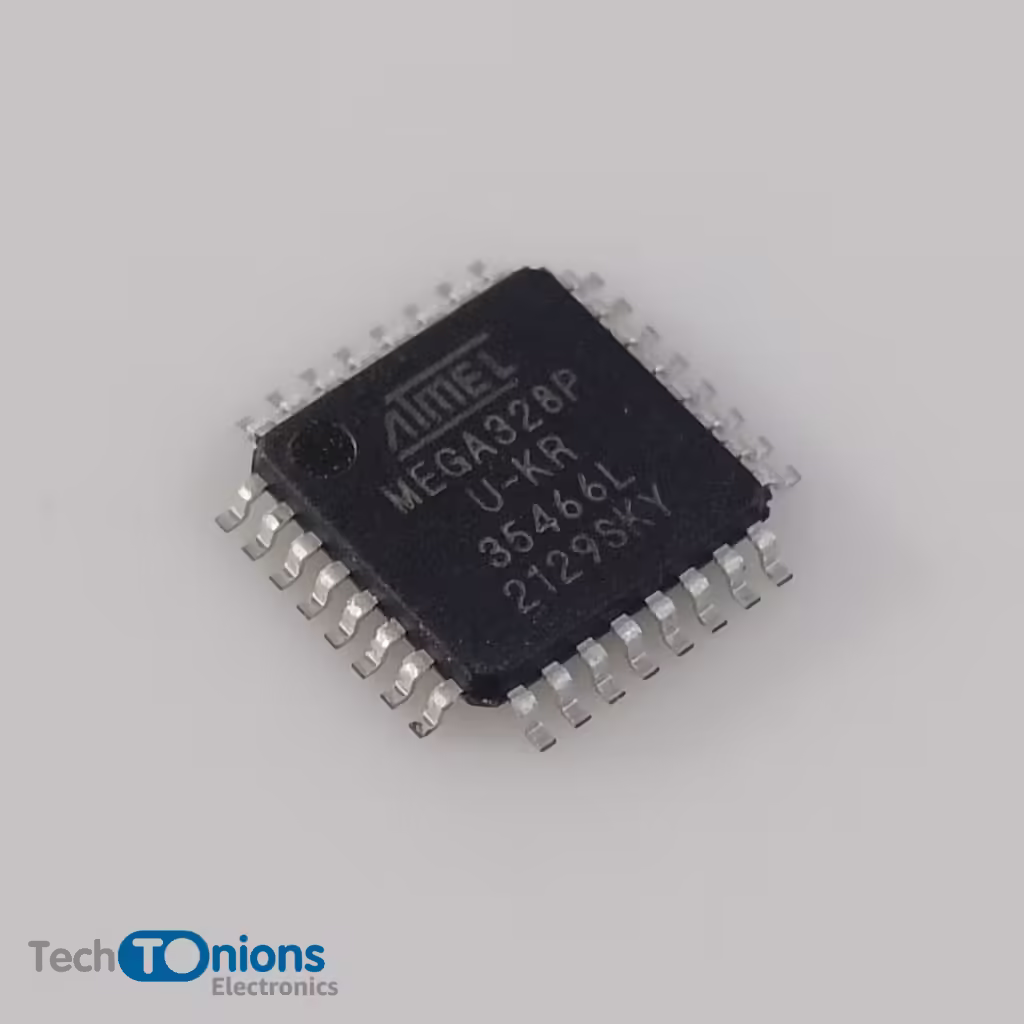

ATMEGA328P
In stock
Original price was: ₹250.00.₹175.00Current price is: ₹175.00. (Including. of GST 18%)
SKU:
TO-15617
- 131 instructions executed swiftly in a single clock cycle.
- 32 x 8 general-purpose working registers.
- Fully static operation ensures stability.
- Achieves up to 20MIPS at 20MHz.
- On-chip 2-cycle multiplier for efficient arithmetic.
- Flash memory: 10,000 write/erase cycles; EEPROM: 100,000 cycles.
- Optional boot code with independent lock bits.
- In-system programming via on-chip boot program.
- True read-while-write operation.
- Programming lock for software security.
- Atmel® QTouch® library support.
- Up to 64 sense channels for touch interfaces.
- Weight : 0.15 g
ESP8266 WiFi Wireless IoT Board (ESP-12F Series)
In stock
Original price was: ₹230.00.₹145.00Current price is: ₹145.00. (Including. of GST 18%)
SKU:
TO-71722
| Parameter | Value |
|---|---|
| Module Series | ESP-12F |
| Core Processor | ESP8266 (32-bit Tensilica L106) |
| WiFi Standards | 802.11 b/g/n |
| Operating Voltage | 3.3V |
| Current Consumption | ~80mA (average), ~300mA (peak) |
| Flash Memory | 4MB (external) |
| GPIO Pins | 11 (multiplexed with other functions) |
| Interfaces | SPI, I2C, UART, PWM |
| Antenna | Onboard PCB antenna |
| Dimensions | 16mm × 24mm × 3mm |
| Operating Temperature | -40°C to +125°C |
| Programming Options | Arduino IDE, Lua, AT commands |
| Certifications | FCC, CE, RoHS |
MT3608 SOT23 DC-DC Step Up Boost IC 2A – 24V – 1.2MHz SMD
In stock
Original price was: ₹15.36.₹7.40Current price is: ₹7.40. (Including. of GST 18%)
SKU:
TO-55371
- Type: Step-up DC-DC converter
- Input Voltage: 2V to 24V
- Output Voltage: Adjustable, up to 28V
- Switching Frequency: 1.2MHz (fixed)
- Current Limit: Internal 4A switch
- Efficiency: Up to 97%
- Protection: Under-voltage lockout, current limiting, thermal overload protection
- Mode: Automatic Pulse Frequency Modulation (PFM) at light loads
- Power MOSFET: Integrated 80mΩ
- Package: 6-pin SOT23
- Applications: Portable electronics, battery-powered devices, low-power applications.

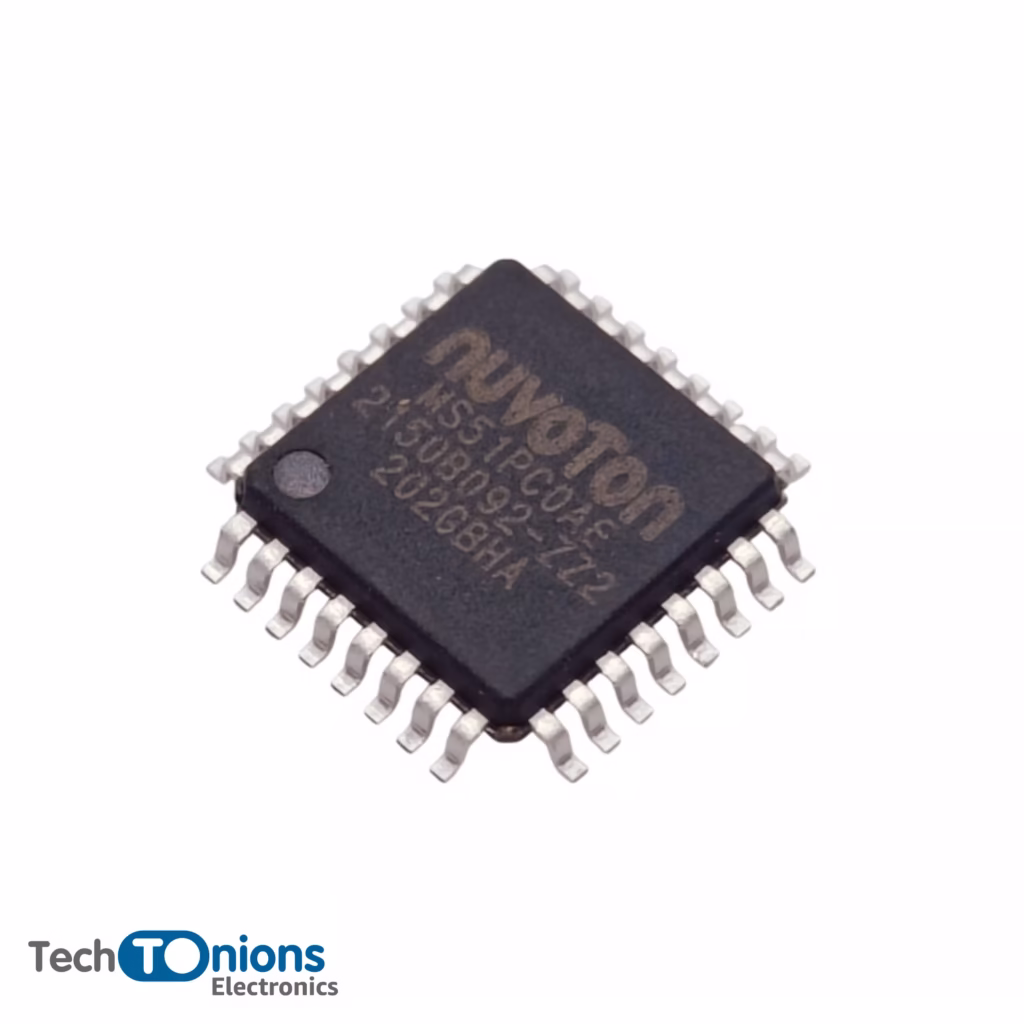

nuVoton MS51PC0AE
